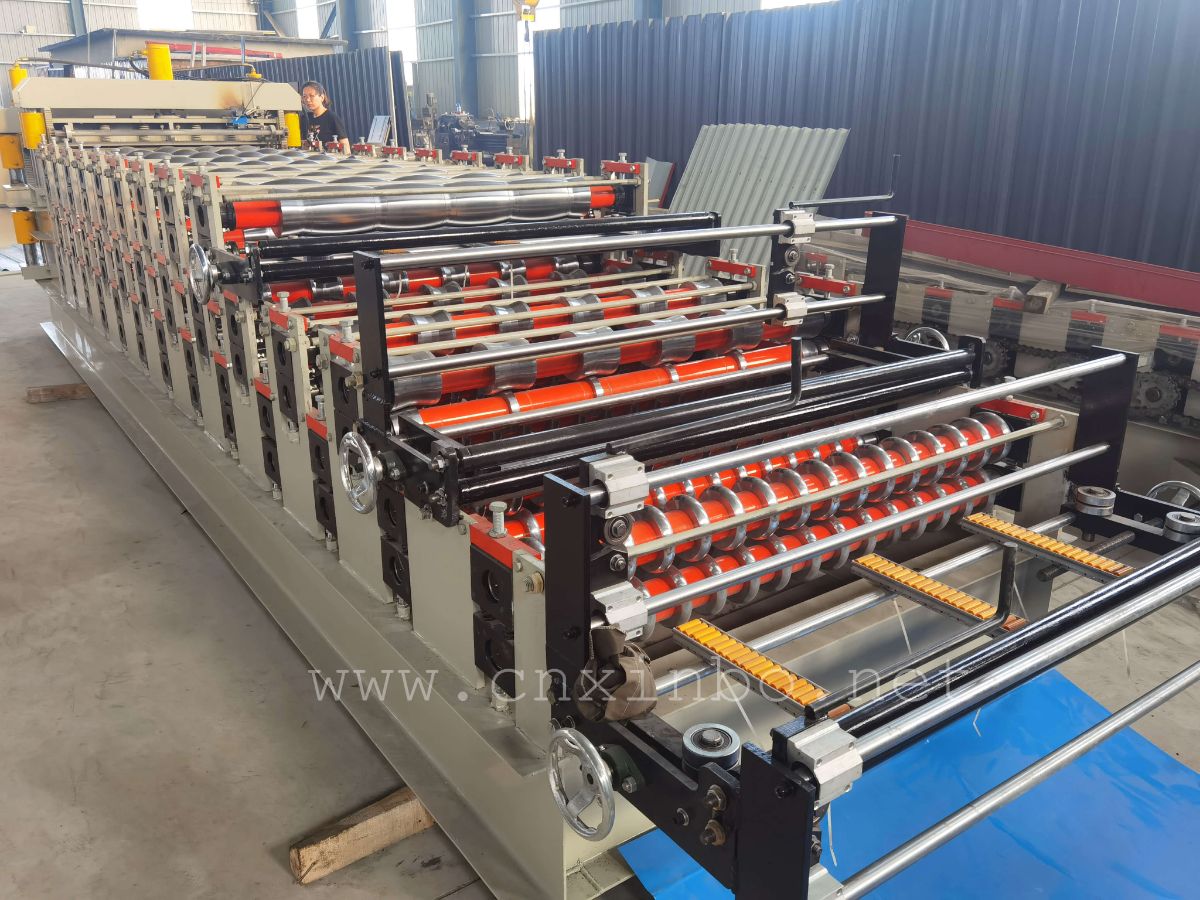

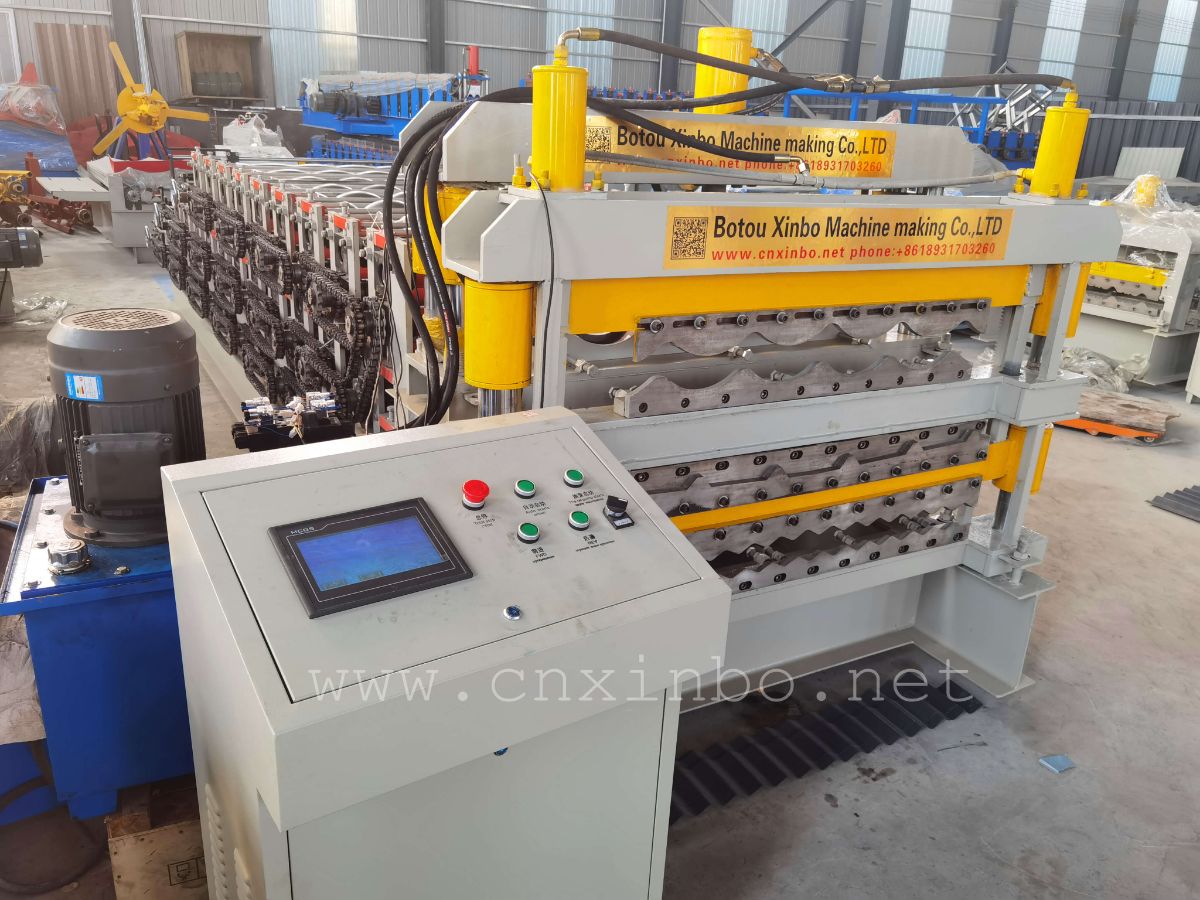

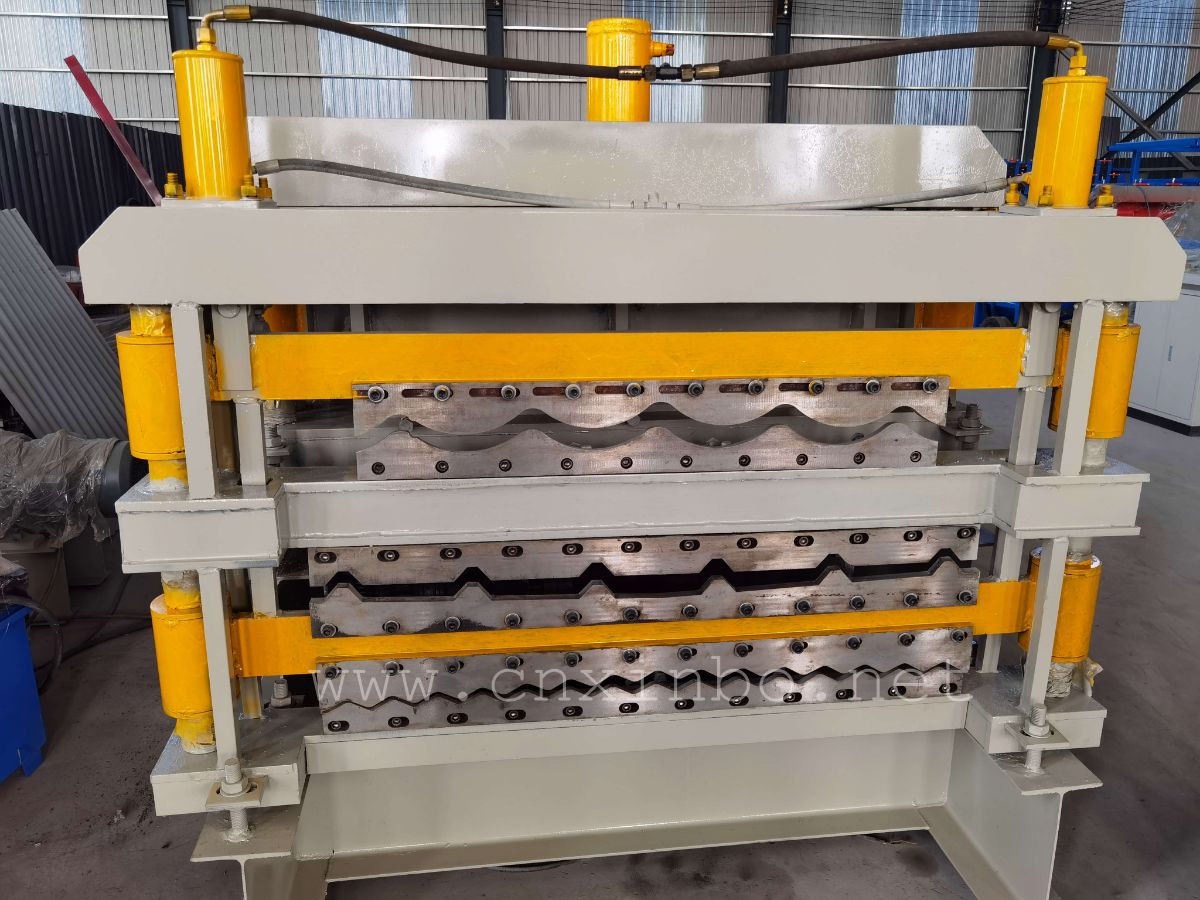

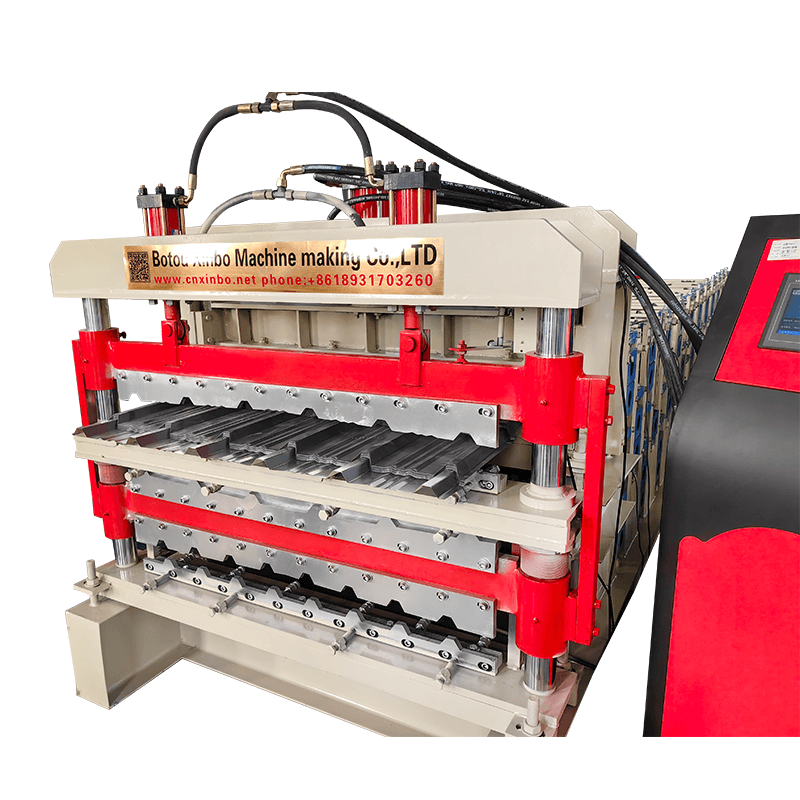

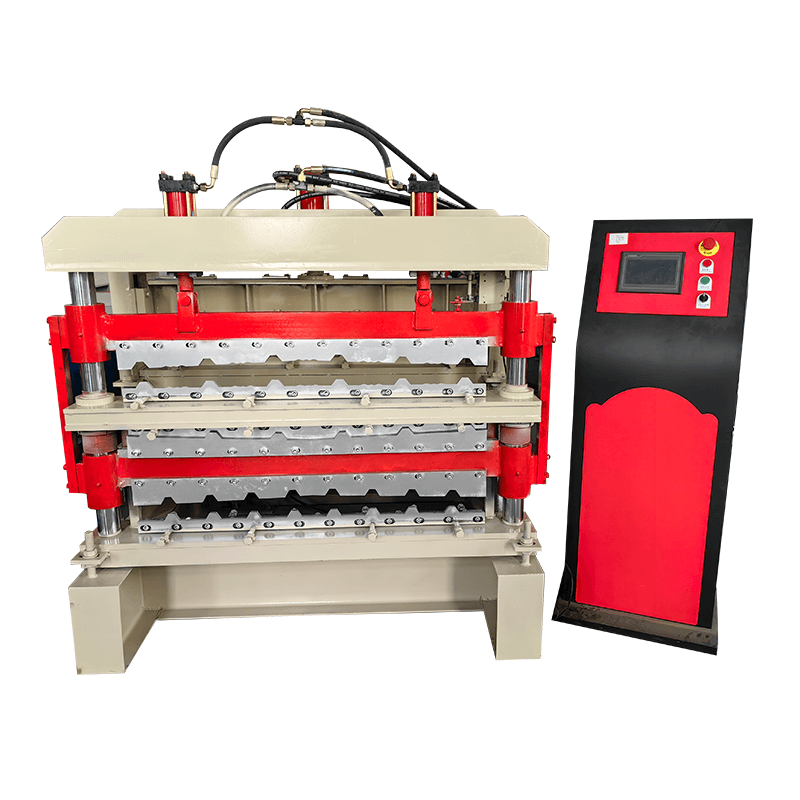

Three layer roof sheet roll forming machine
The three-layer tile press is a combination of three types of tile presses, which saves space for the equipment and makes the operation easier. The three-layer tile pressing machine has reasonable structure and beautiful appearance. And it is especially suitable for customers with small sites and on-site construction.

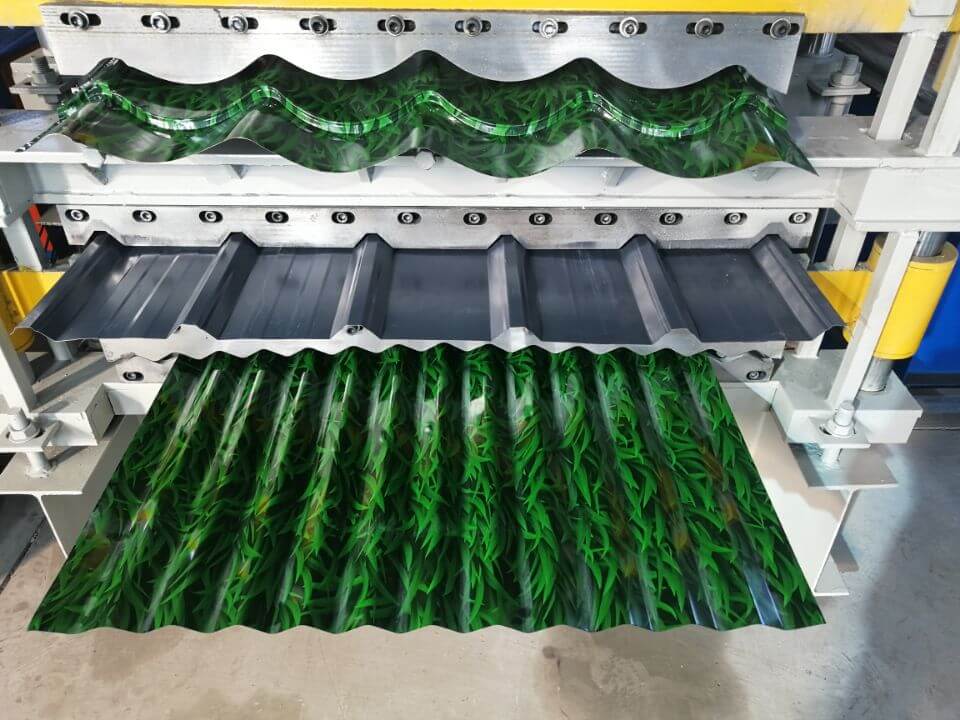

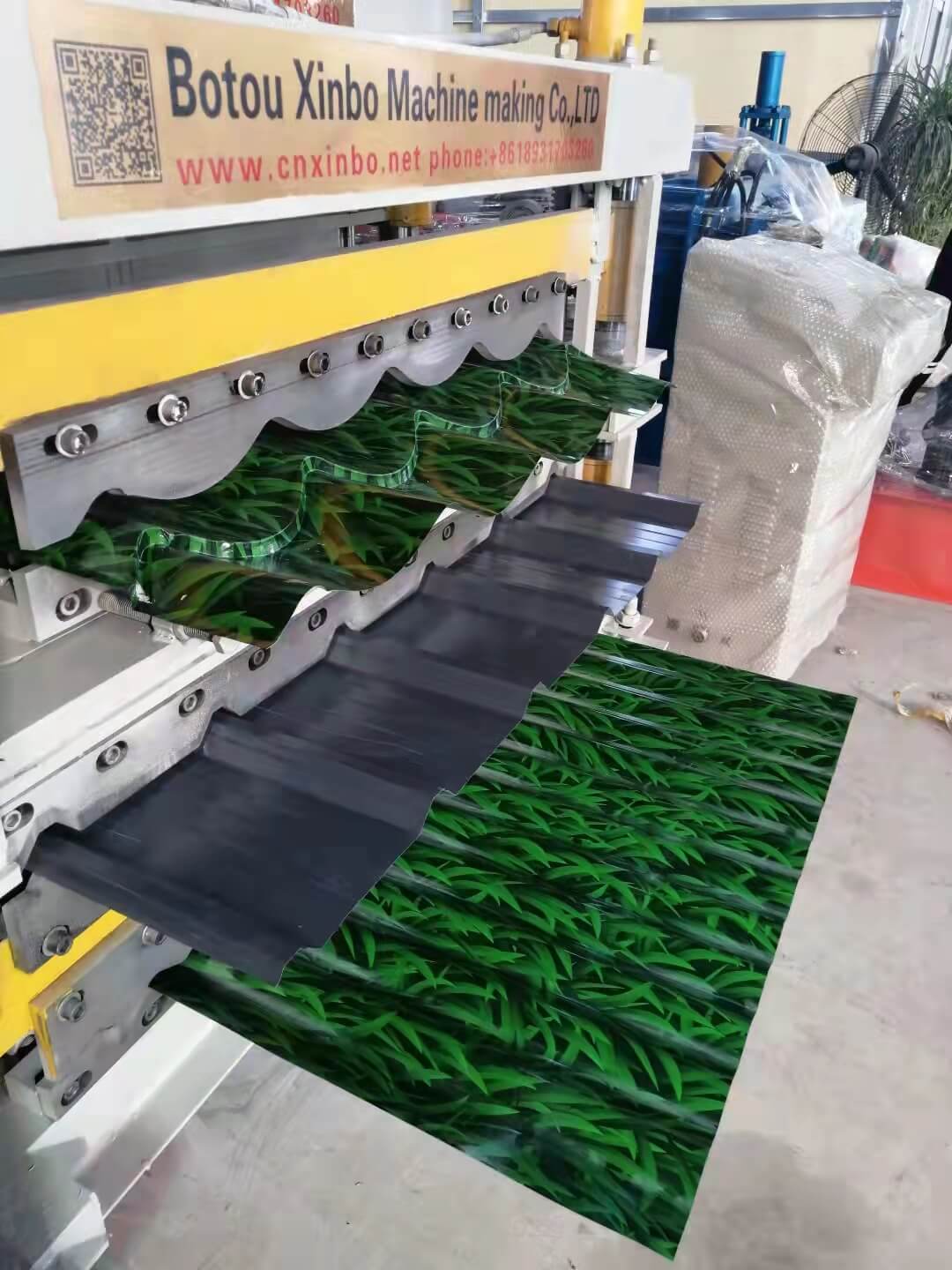

The three-layer tile pressing machine is composed of unloading, forming, and post-forming cutting. The color plate produced has a flat and beautiful appearance, uniform paint lines, high strength, and durability. It is widely used in industrial and civil buildings, such as factories, warehouses, gymnasiums, exhibition halls, The surfaces and walls of theaters and other rooms.
No. |
Item |
Specification |
1. |
Processing Material |
PPGI,GI,Aluminium |
2. |
Input Width(mm) |
1200 |
3. |
Formed Width(mm) |
1000 |
4. |
Processing Thickness(mm) |
0.28–0.8 |
5. |
Material of Rollers |
45# steel,with heat treatment |
6. |
Diameter of Shaft |
Ф70mm |
7. |
Production Speed |
12—15m/min |
8. |
Roller Driven |
Decelerating Motor+Chain Transmission |
9. |
Cutting Model |
Hydraulic Profile Cutting |
10. |
Length Measurement |
Encoder |
11. |
Control Style |
PLC |
12. |
Operation Model |
Button + Touch Screen |
13. |
Total Power |
4+4kw |
14. |
Voltage |
380V 50HZ or at buyer’s request |
15. |
Number of roller stations |
14 rows or as designing |
