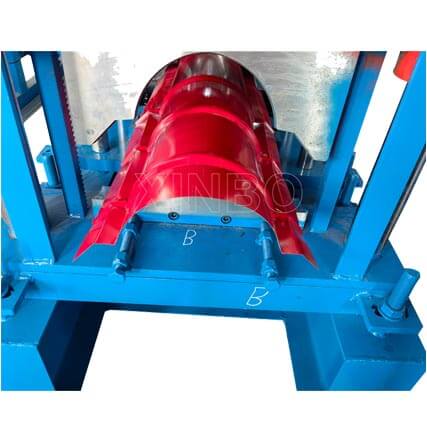

Ridge Cap Tile Roll Forming Machine
ridge cap tile is a type of roofing tile used to cover the ridge of a roof, the highest point where two roof slopes meet. These tiles serve several purposes, including preventing water leakage, protecting the underlying structure from the elements, and providing a finished look to the roof. Ridge cap tiles are available in various materials, including ceramic, concrete, and metal, each offering unique advantages.
This machine advantages
High Precision
Durable Construction
Customized Designs
User-Friendly Interface
Energy Efficiency
Technical Specifications of this glazed roof tile roll forming machine
| Processing Material | PPGI, GI, Aluminium, zinc coils |
| Input Width | 914mm/925mm/1000mm/1200mm/1220mm/1250mm/customized |
| Formed Width | As drawings/needing |
| Processing Thickness | Standard: 0.3—0.7mm/customized |
| Frame Style | 350mm H steel welded |
| Material of Rollers | 45# steel, with heat treatment and hard chromed |
| Diameter of Shaft | 70mm |
| Production Speed | Standard: 2–5m/min; customized |
| Roller Driven | Decelerating Motor+China Transmission |
| Cutting Model | Hydraulic Profile Cutting |
| Length Measurement | Encoder |
| Control Style | PLC |
| Operation Model | Button+Touch Screen |
| Total Power | 3+3KW; customized |
| Voltage | 380V, 50Hz, 3 phrases; or at buyer’s request |
