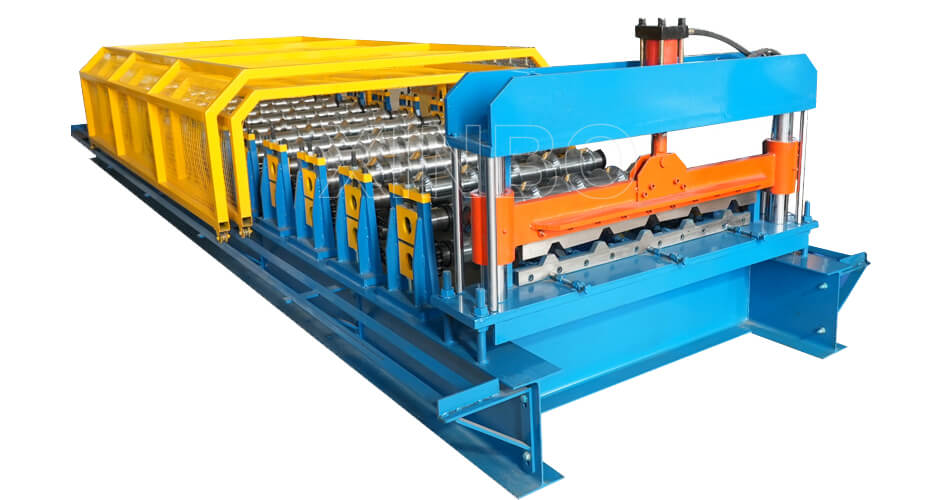

New Style Rib Roofing Sheet Roll Forming Machine with Safety Cover
New Style Rib Roofing Sheet Roll Forming Machine with Safety Cover is a specialized piece of equipment designed to manufacture trapezoidal-shaped roofing sheets from metal coils. The machine operates by feeding a flat metal coil through a series of rollers that progressively shape the metal into the desired trapezoidal profile. This process not only ensures precision in dimensions but also enhances the structural integrity of the sheets.
Technical Specifications of this rib roofing sheet roll forming machine
| Processing Material | PPGI, GI, Aluminium, zinc coils |
| Input Width | 914mm/925mm/1000mm/1200mm/1220mm/1250mm/customized |
| Formed Width | As drawings/needing |
| Processing Thickness | Standard: 0.3—0.7mm/customized |
| Frame Style | 350mm H steel welded |
| Material of Rollers | 45# steel, with heat treatment and hard chromed |
| Diameter of Shaft | 70mm |
| Production Speed | Standard: 0–15m/min; customized |
| Roller Driven | Decelerating Motor+China Transmission |
| Cutting Model | Hydraulic Profile Cutting |
| Length Measurement | Encoder |
| Control Style | PLC |
| Operation Model | Button+Touch Screen |
| Total Power | 4+4KW; customized |
| Voltage | 380V, 50Hz, 3 phrases; or at buyer’s request |
