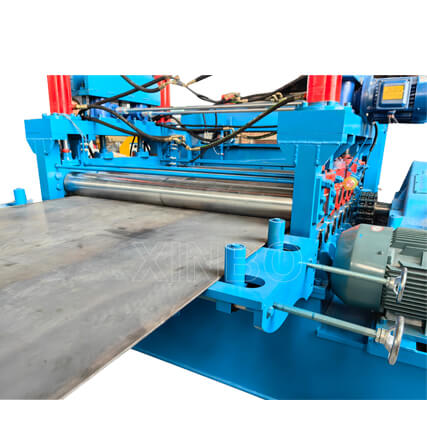

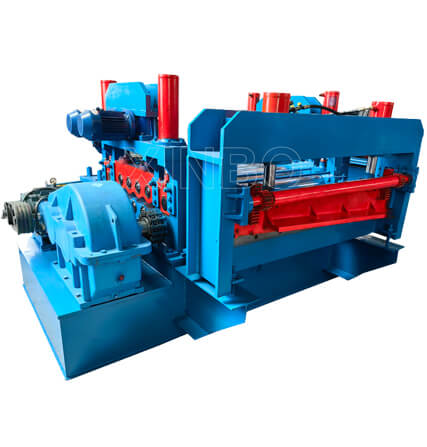

New Designing Flatting-Slitting-Cutting Production Line
The process of leveling, slitting, and cutting is crucial in the metalworking industry. It involves the transformation of large metal coils into precise, flat sheets or strips that can be used in various applications. The Automatic Coil Leveling-Slitting-Cutting Machine integrates these processes into a single automated line, enhancing productivity and reducing manual labor.
| Processing Material | PPGI, GI, Aluminium, zinc coils/sheets |
| Input Width | 914mm/925mm/1000mm/1200mm/1220mm/1250mm/customized |
| Slitting Width | As needing, adjustable |
| Cutting Length | As needing, adjustable |
| Thickness Range | Max 2.0mm, can be adjustable easily with hand wheels |
| Processing Thickness | Standard: max 6.0mm(for above photo showed machine)/customized |
| Frame Style | 400mm H steel beam welded |
| Production Speed | Standard: 0–15m/min; customized |
| Control Style | Automatic by computer |
| Roller Driven | By Motor |
| Total Power | 11KW; customized |
| Voltage | 380V, 50Hz, 3 phrases; or at buyer’s request |
