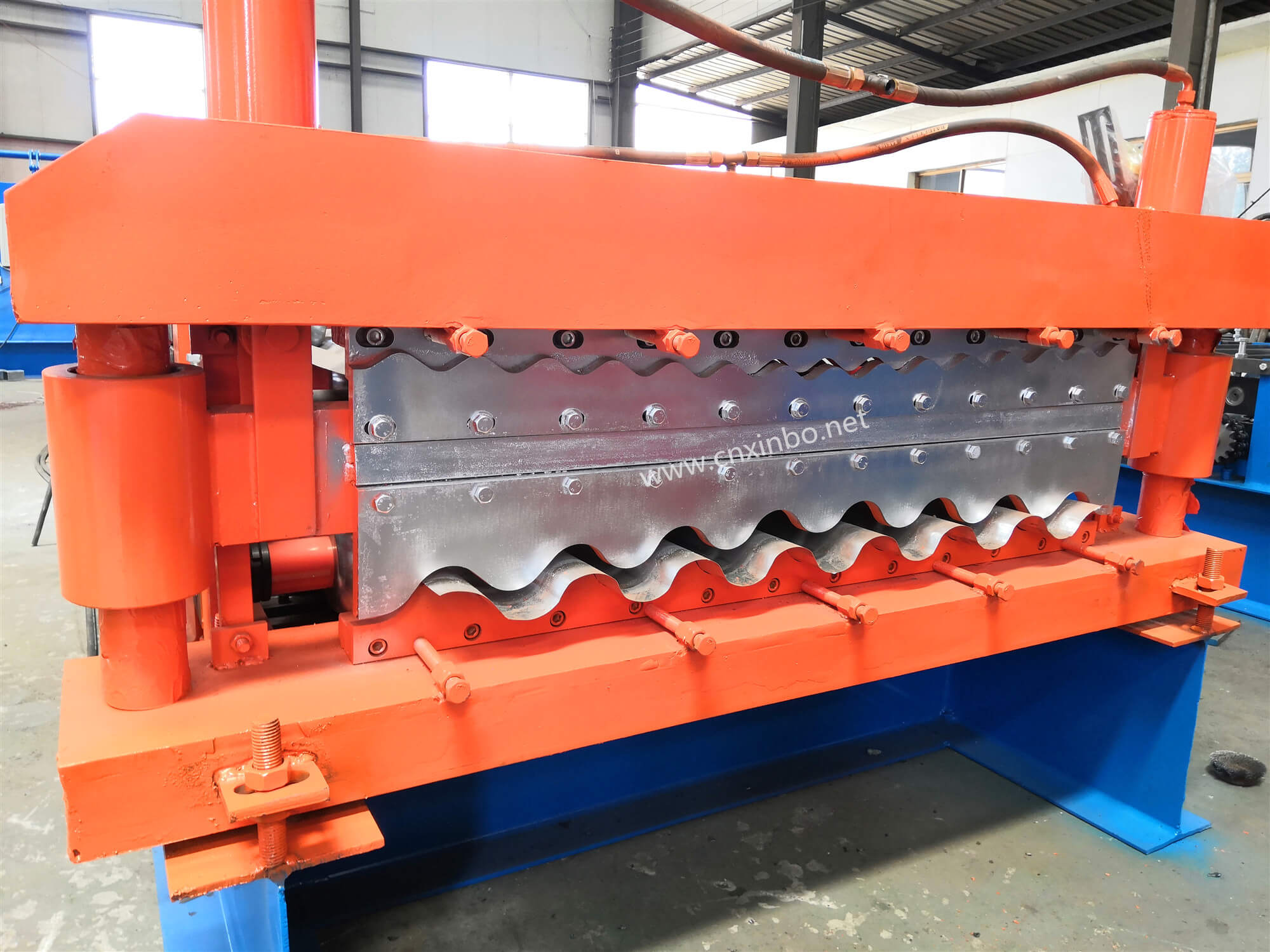

High quality automatic double-layer tile press roof panel machine
Double layer tile pressing machine, using hydraulic technology, is the main product of our factory. It is characterized by automatic control of equipment, simple operation, fast running speed, dual use of equipment, small floor area, and durability.
It is widely used in color steel tile full steel structure factory frame, single face color steel plate steel structure factory, multi span steel structure factory, factory with wooden crane beam, villa style color steel plate house with multi span color steel plate ceiling, roof adding, large-span factory, and light steel structure shed.
|
No. |
Item |
Specification |
|
1. |
Processing Material |
PPGI,GI,Aluminium |
|
2. |
Input Width(mm) |
1200 |
|
3. |
Formed Width(mm) |
1000 |
|
4. |
Processing Thickness(mm) |
0.28–0.8 |
|
5. |
Material of Rollers |
45# steel,with heat treatment |
|
6. |
Diameter of Shaft |
Ф70mm |
|
7. |
Production Speed |
12—15m/min |
|
8. |
Roller Driven |
Decelerating Motor+Chain Transmission |
|
9. |
Cutting Model |
Hydraulic Profile Cutting |
|
10. |
Length Measurement |
Encoder |
|
11. |
Control Style |
PLC |
|
12. |
Operation Model |
Button + Touch Screen |
|
13. |
Total Power |
3+3KW |
|
14. |
Voltage |
380V 50HZ or at buyer’s request |
|
15. |
Number of roller stations |
14 rows or as designing |
