Cassette Keel and C50 Channel Roll Forming Machine

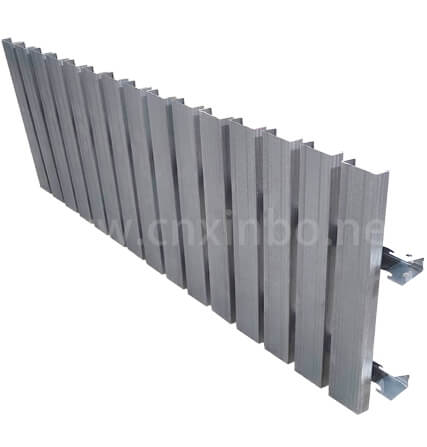

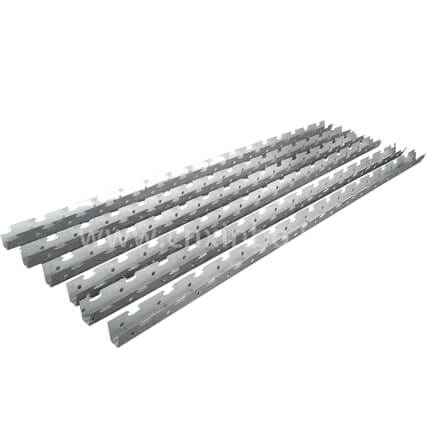

Cassette keels are typically made from steel or aluminum and are characterized by their unique design, which allows for efficient load distribution and structural integrity. They are often utilized in modular construction, where speed and efficiency are paramount. The roll forming process ensures that the keels are produced with precision and uniformity, making them ideal for various applications.

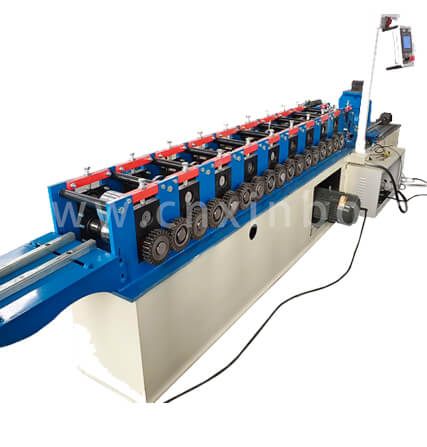

Technical Specifications of this keel roll forming machine
| Processing Material | GI coils |
| Input Width | customized |
| Formed Width | as needing |
| Processing Thickness | Standard: 0.3—0.6mm |
| Frame Style | Steel plate welded box |
| Material of Rollers | 45# steel, with heat treatment and hard chromed |
| Diameter of Shaft | 50mm |
| Production Speed | Standard: 0–25m/min(without punching); customized |
| Roller Driven | Gear Transmission |
| Cutting Model | Hydraulic Profile Cutting |
| Length Measurement | Encoder |
| Control Style | PLC |
| Operation Model | Button+Touch Screen |
| Total Power | 4+4+1.5KW; customized |
| Voltage | 380V, 50Hz, 3 phrases; or at buyer’s request |
