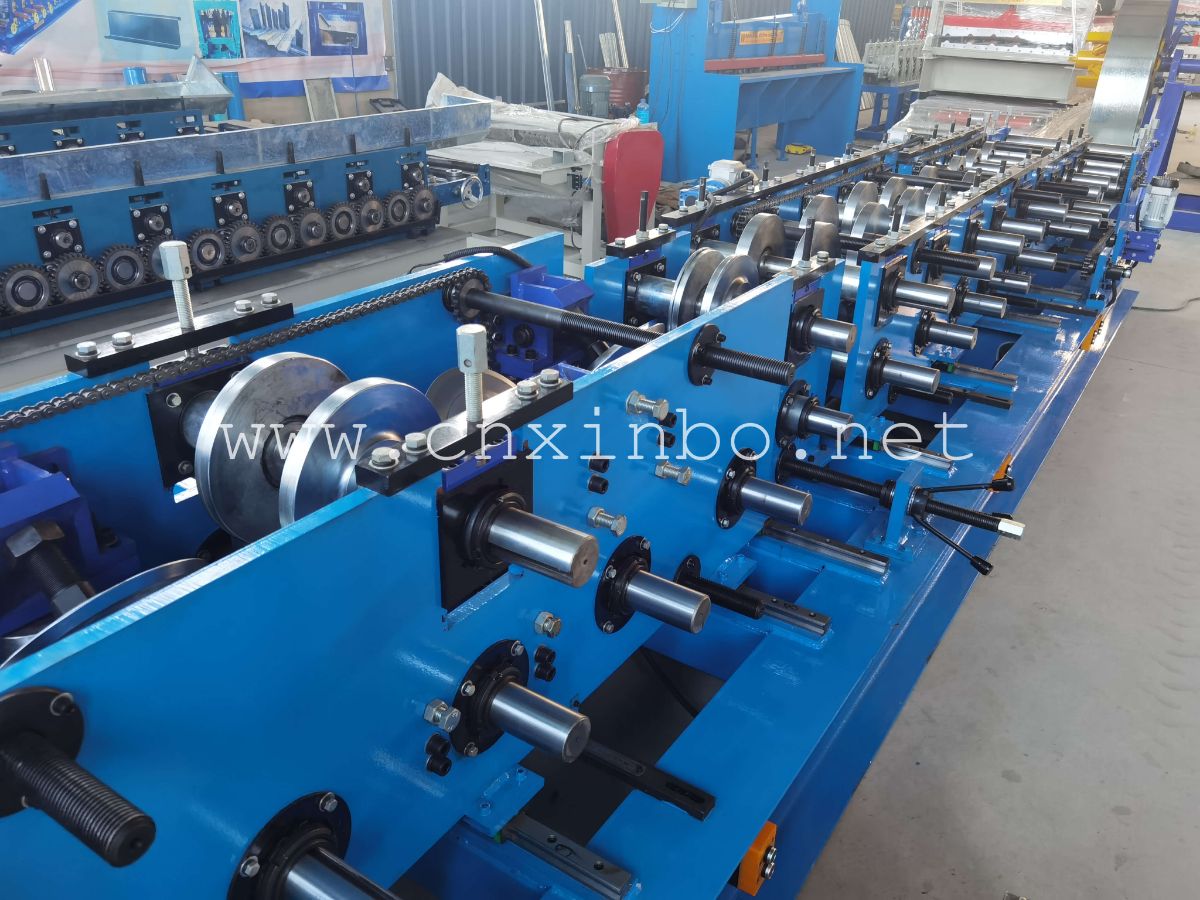

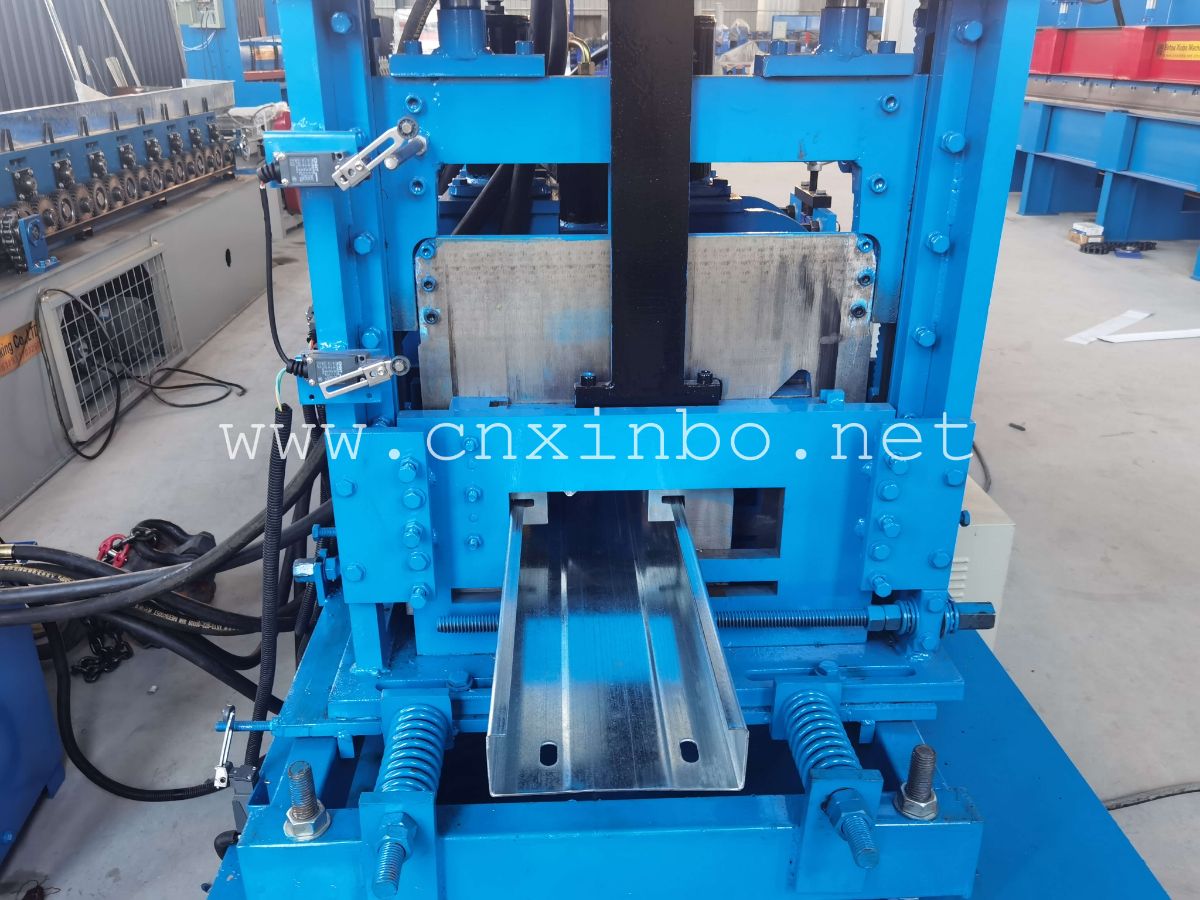

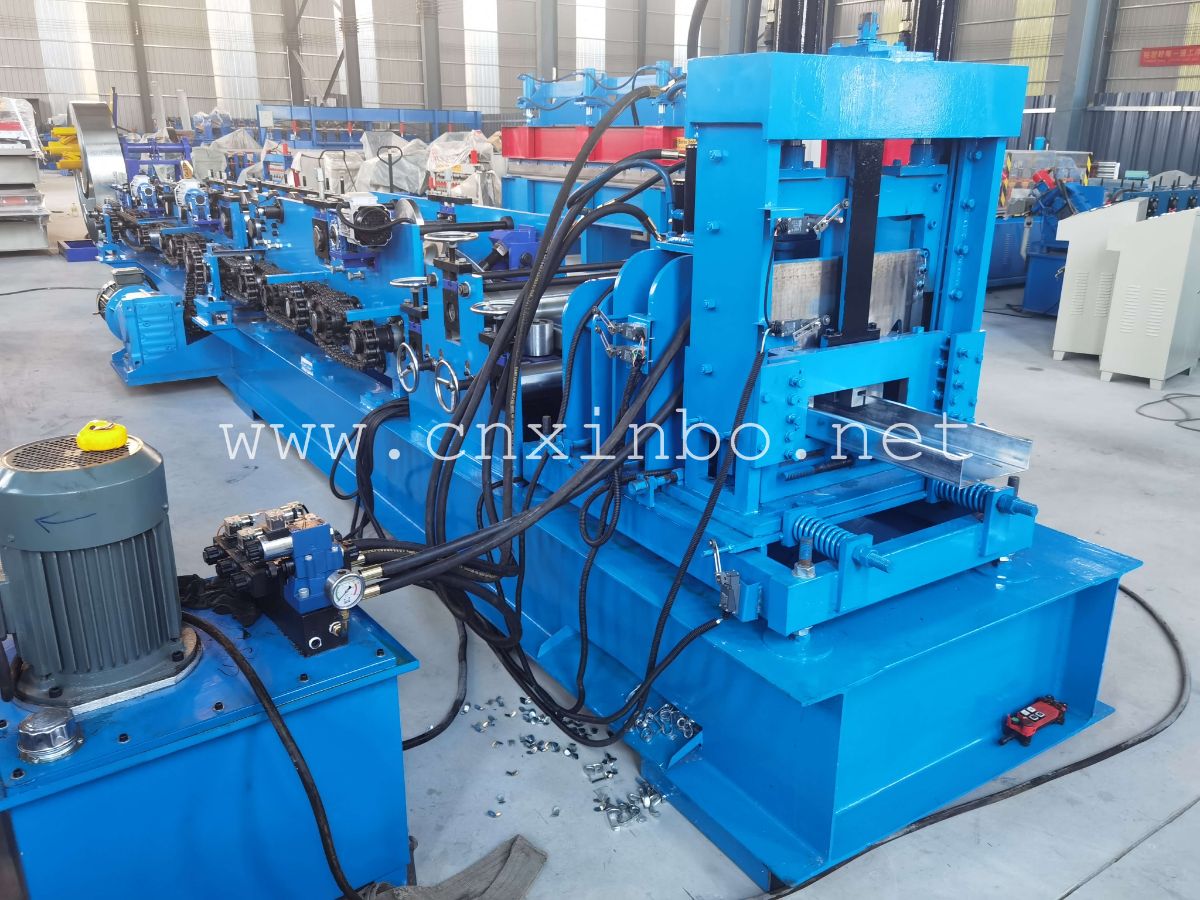

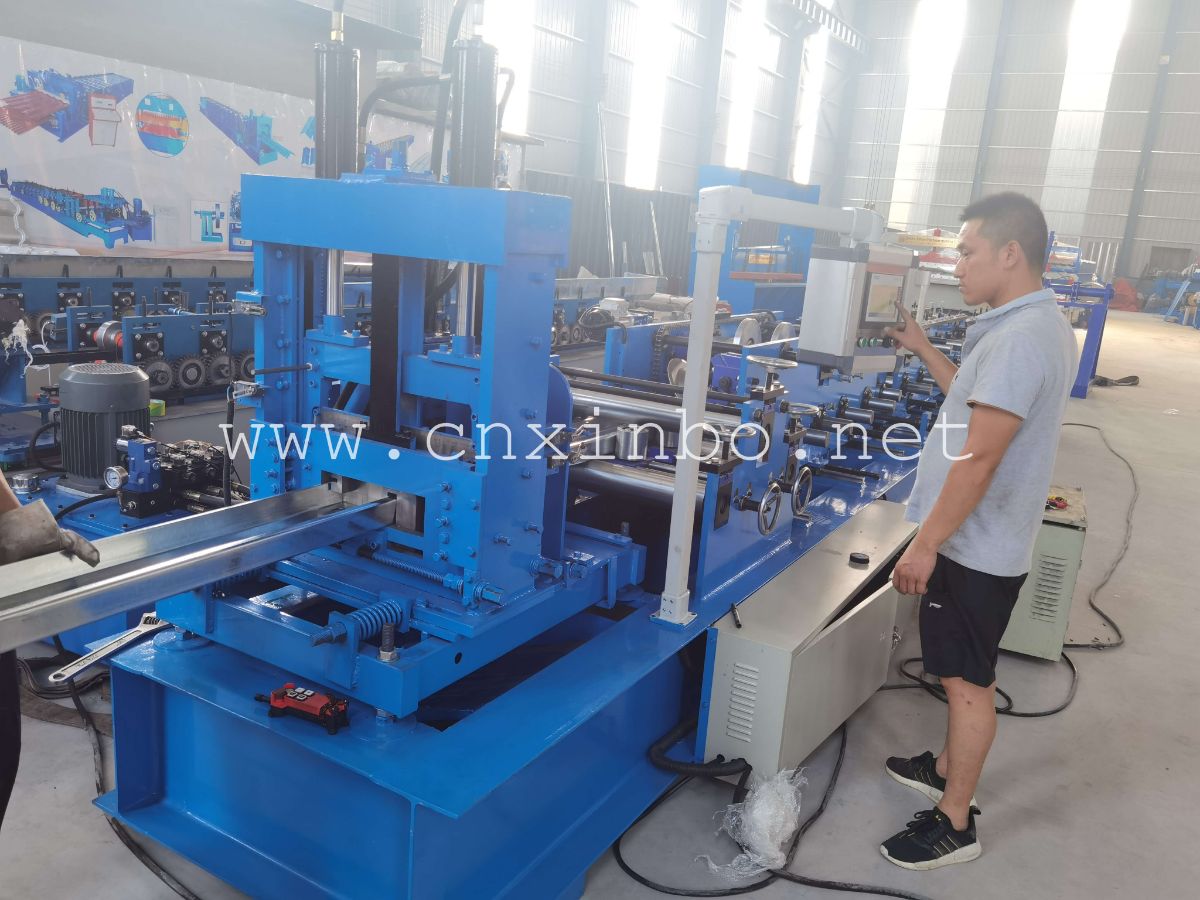

C purlin roll Forming Machine

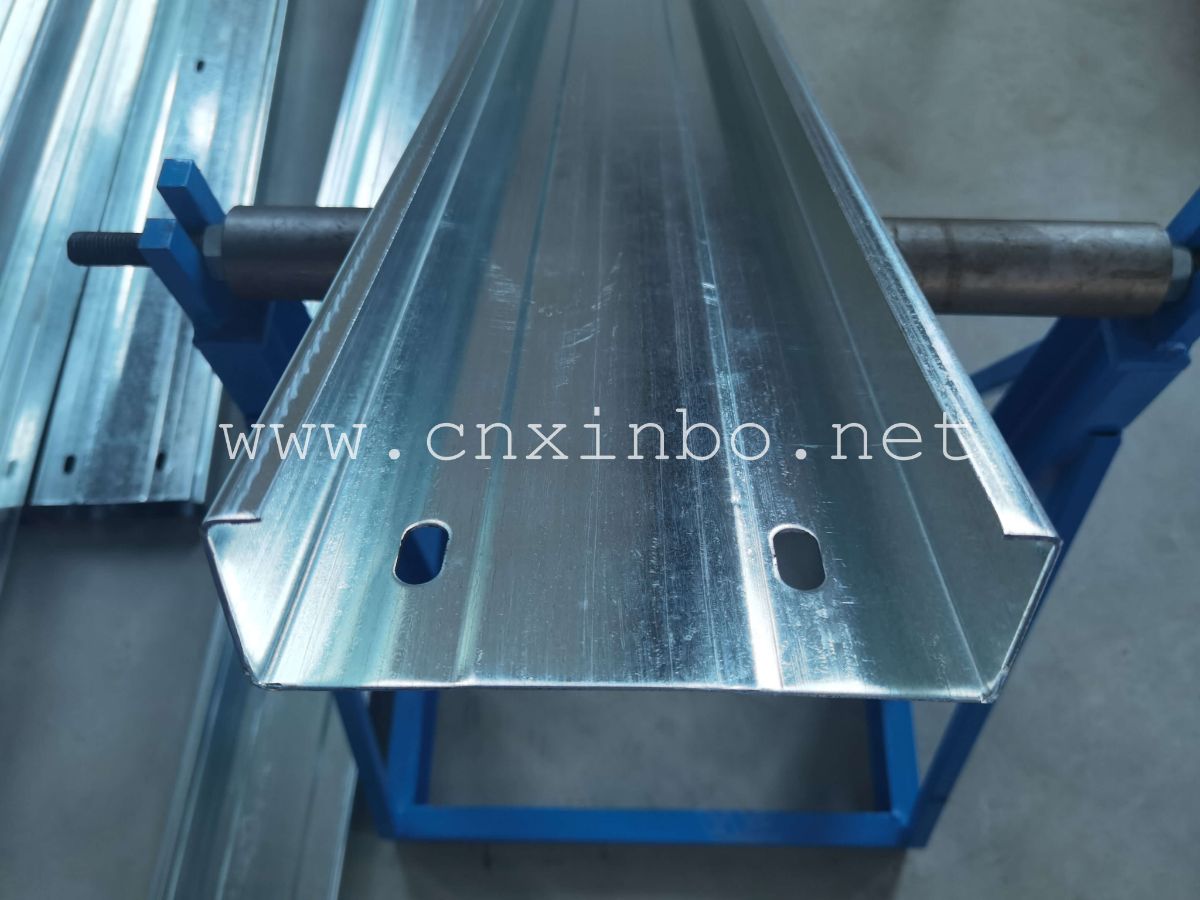

c purlin roll forming machines are used in the construction industry to produce high-quality purlins, which are used to support the roof and walls of buildings. These machines are designed to produce purlins in various sizes and shapes, depending on the requirements of the building project.
The advantages of C purlin machine are as follows:
1. The production of purlins of different specifications requires no replacement of rollers or gaskets.
2. There is no need to change tools for different sizes.
3. Simple operation and low maintenance cost
4. Unlimited length (any size within the scope of the machine) helps to save materials
5. It is optional to drill holes at any position on the side of purlin web and flange
No. |
Item |
Specification |
1. |
Processing Material |
PPGI,GI,AL |
2. |
Formed Width(mm) |
As drawing |
3. |
Processing Thickness(mm) |
1-1.5 |
4. |
Material of Rollers |
45# steel,with hard chrome coated |
5. |
Diameter of Shaft |
Ф80mm |
6. |
Production Speed |
0—15m/min |
7. |
Roller Driven |
Decelerating Motor+Chain Transmission |
8. |
Cutting Model |
Hydraulic Profile Cutting |
9. |
Length Measurement |
Encoder |
10. |
Control Style |
PLC control |
11. |
Total Power |
5.5KW |
12. |
Voltage |
380V 50HZ or at buyer’s request |
